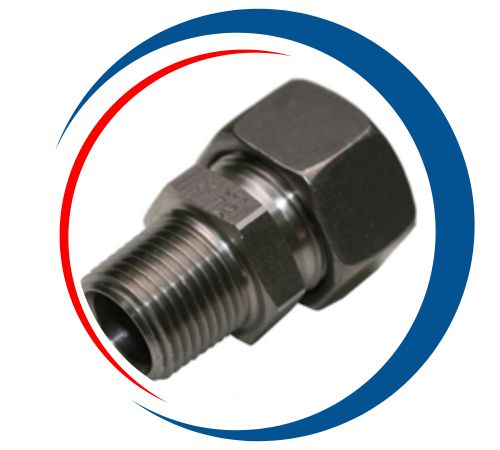

Hydraulic Male Stud Coupling

Home > Hydraulic Male Stud Coupling

Hydraulic Male Stud Couplings are expertly crafted fittings that play a crucial role in securely connecting hydraulic hoses, tubes, or pipes within high-pressure fluid systems. With a male threaded end, they create a leak-proof bond when paired with a matching female port or coupling. These couplings are commonly found in various sectors, including industrial, construction, automotive, and agriculture, where dependable performance, pressure resistance, and durability are essential for safe and efficient fluid transfer. Their sturdy design minimizes leakage and ensures a long lifespan, even in demanding hydraulic applications.

Hydraulic Male Stud Coupling Supplier in Bangkok, C.S Male Stud Coupling Price List in Pattaya, Male Stud Coupling with ED Manufacturer in Chiang Mai, SS Male Stud Coupling In Nonthaburi, Hydraulic Weld Connector Exporter in Pattaya, SS Weld Connector With Weld Nipple and O Ring Manufacturer in Rayong, Hydraulic Male Stud Coupling In Bangkok, Thailand.

Typically made from materials like carbon steel, stainless steel, or alloy steel, Hydraulic Male Stud Couplings boast impressive tensile strength, corrosion resistance, and mechanical durability, even under high pressure and temperature. The male threads guarantee a secure, leak-proof connection while making it easy to assemble and disassemble for maintenance. Mechanically, these couplings are tough, stable, and resistant to wear, pressure surges, and vibrations, ensuring they operate reliably in challenging hydraulic environments.

Hydraulic Male Stud Coupling Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO MALE THREAD , WELD NIPPLE TO MALE THREAD

BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182
	STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
	BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Male Stud Coupling Manufacturing Company in Bangkok

You’ll find Hydraulic Male Stud Couplings widely used in hydraulic machinery, construction equipment, industrial hydraulic systems, agricultural machinery, and mobile fluid power applications. They excel at connecting hoses, tubes, and pipes in high-pressure circuits, ensuring safe and efficient fluid transfer. In both mobile and stationary hydraulic systems, they uphold leak-proof performance, operational safety, and system integrity. With their combination of mechanical strength, corrosion resistance, and reliability, Hydraulic Male Stud Couplings are indispensable components for critical high-pressure hydraulic applications.

Types of Hydraulic Male Stud Coupling

Dimension of Hydraulic Male Stud Coupling

DIAM D	C	E	F	F1	DIM G	H	HMAXI	H1	BODY	SEALING WASHER	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE
4 MM	G1/8	6,5 MM	13 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
4 MM	G1/8	5,5 MM	13 MM	10 MM	14 MM	17,5 MM	9 MM	brass	nitrile	-40 CE	100 CE	0,016 KG
4 MM	M5x0,8	5 MM	10 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,01 KG	10
4 MM	M7x1	6,5 MM	10 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
4 MM	M8x1	6,5 MM	11 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
5 MM	G1/8	6,5 MM	13 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,018 KG	10
5 MM	G1/8	5,5 MM	13 MM	12 MM	14 MM	18,5 MM	9,5 MM	brass	nitrile	-40 CE	100 CE	0,027 KG
5 MM	M8x1	6,5 MM	11 MM	12 MM	17,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
5 MM	M10x1	6,5 MM	14 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,02 KG	10
6 MM	G1/8	6,5 MM	13 MM	13 MM	18 MM	8,5 MM	brass	nitrile	-40 CE	100 CE

Hydraulic Male Stud Coupling Exporter in Bangkok, C.S Male Stud Coupling Price List in Pattaya, Male Stud Coupling with ED Manufacturer in Chiang Mai, Hydraulic Male Stud Coupling In Nonthaburi, Male Stud Coupling with ED Supplier in Pattaya, SS Male Stud Coupling Manufacturer in Rayong, Hydraulic Male Stud Coupling In Bangkok, Thailand.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hydraulic Male Stud Coupling Supplier in Bangkok, Thailand

Yodsak Tube Fittings is a leading supplier and stockist of premium Hydraulic Male Stud Coupling in Bangkok, Thailand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Male Stud Coupling Uses

Hydraulic Male Stud Couplings are widely used in hydraulic systems for connecting pipes or hoses to components like pumps, cylinders, and valves. They ensure a secure, leak-free connection under high pressure, making them ideal for industrial machinery, construction equipment, and automotive systems. These couplings facilitate efficient fluid flow while minimizing vibration and ensuring easy assembly and disassembly. Their robust design allows for reliable performance in harsh environments, including oil and gas, agriculture, mining, and marine industries, where durability and reliability are crucial.
